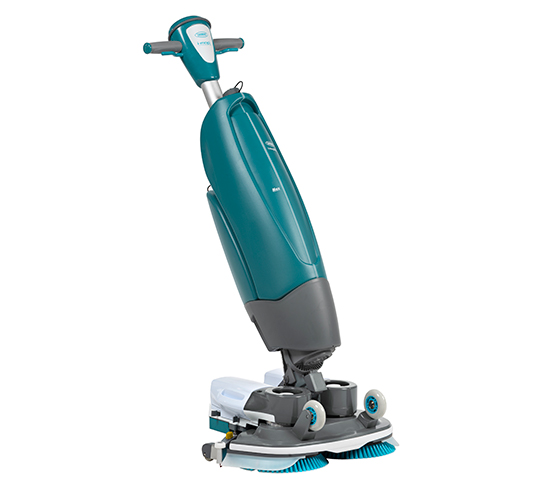

i-mop XL Plus Walk-Behind Scrubber-Dryer

The manoeuvrability of a mop with the cleaning performance of a walk-behind scrubber-dryer. The i-mop^® XL Plus makes it possible to clean any floor surface with freedom of movement and great ease of use. No borders or boundaries. This machine isn't just designed for cleaning; it is designed for the cleaner.

Cleaning path

460 mm

Solution tank capacity (l)

4 L

Main Down Pressure

Up to 22.5 kg

There was an error adding item(s) to the cart. Please try again.

Leasing & Financing

Explore Rental Options

Find Parts & Consumables

i-mop XL Plus Walk-Behind Scrubber-Dryer

There was an error adding item(s) to the cart. Please try again.

i-mop XL Plus FEATURES

HIGHLIGHTS

Remove more surface soil than traditional mop and bucket cleaning with the i-mop XL Plus’ balanced weight distribution and twin counter-rotating brushes.
Increase productivity, minimize foot traffic disruptions, create a more inviting facility and reduce the risk of slip and fall injuries with improved cleaning performance versus manual mopping.
Relieve the operator of extra weight with the i-balance mechanism and prevent the machine from falling.
Protect the vacuum motor from overflowing water with a floating ball in the filtration element that pops up and engages to close the recovery tank when it is full.
Keep your motor safe from water damage with an electronic switch that automatically shuts down the motor when held below a 32 degree angle.
Prevent your battery from draining with the i-mop's battery safe guard that ensures the machine remains off when in storage mode.
Easily clean or replace squeegee with the quick change squeegee assembly.

i-mop XL Plus SPECIFICATIONS

Estimated Coverage/Productivity: 1800 sq m
Weight: 26.7 kg (with batteries and water)
Sound level: As low as 79.6 dBA
Main Down Pressure: Up to 22.5 kg
Charger type: Off-board
Pad RPMs: Up to 350 rpm
Machine Length: 350.5 mm
Cleaning path: 460 mm
Application: Indoor

Recovery tank capacity (l): 6 L
Solution tank capacity (l): 4 L
Machine Type: Walk-Behind
Estimated Run Time: Up to 70 mins
Power Source: Lithium-Ion Battery
Machine Width: 480 mm
Head Types: Disk
Machine Height: 1199 mm

i-mop XL Plus KEY BENEFITS

Easy Operation & Maintenance

Easily clean floors with the flexibility of a mop and the power and speed of a scrubber.

Improve cleaning performance with twin 350 RPM counter-rotating brushes.
Easily clean around and underneath objects with a unique ergonomic design that allows for one-handed operation.
Get ultimate cleaning flexibility and eliminate the risk of tripping accidents caused by cords.
Make swift work out of any cleaning job with a cleaning path up to 18 in / 46 cm wide and up to 48.4 lbs / 22.5 kg of down pressure.
Customize your cleaning experience with a variety of brush and pad options to meet your facility's needs.
Fill, empty and re-fill tanks virtually anywhere – not just slop sinks.
Easily transport between different areas, levels and buildings with i-mop's convenient wheels.

Maximize Runtime

Operate continuously when you rotate the use and charging of two sets of batteries.

Get over one hour of runtime on a single charge and minimize downtime with a quick one-hour recharge time.
Increase runtime to 70 to 100 minutes when you use the gray batteries with the i-mop XL Plus. Sold Separately.
Clean 24/7 with a single machine when you charge and swap between two sets of batteries.

Minimize Environmental Impact

Dramatically reduces water and chemical consumption over mop and bucket cleaning.

Reduce chemical and water usage with the i-mop XL Plus’ patented Fluid Management Systems.
Adjust to changing chemical needs in a matter of seconds by switching to a different solution tank.

i-mop XL Plus PARTS

1232608

BRUSH, SOFT, LT BLU, 9.0 [XL QTY 2]

There was an error adding item(s) to the cart. Please try again.

1232578

BRUSH, MED, BLU, 9.0 [XL QTY 2]

There was an error adding item(s) to the cart. Please try again.

1232607

BRUSH, HARD, RED, 9.0 [XL QTY 2]

There was an error adding item(s) to the cart. Please try again.

1234347

PAD, WHT, 8.5 [XL QTY 10 PADS]

There was an error adding item(s) to the cart. Please try again.

1234346

PAD, RED, 8.5 [XL QTY 10 PADS]

There was an error adding item(s) to the cart. Please try again.

1232651

PAD, RED, 8.5 [XL TWISTER QTY 2]

There was an error adding item(s) to the cart. Please try again.

1232650

PAD, WHT, 8.5 [XL TWISTER QTY 2]

There was an error adding item(s) to the cart. Please try again.

1232627

BLADE, SQGE, FRONT, 22.4 [XL]

There was an error adding item(s) to the cart. Please try again.

1232629

BLADE, SQGE, REAR, 24.0 [XL LINA]

There was an error adding item(s) to the cart. Please try again.

1232100

BATTERY KIT [XL I-MOP LEFT & RIGHT]

There was an error adding item(s) to the cart. Please try again.

1265854

TANK KIT, SOLUTION [IMOP XL W/BLUE CAP]

There was an error adding item(s) to the cart. Please try again.

1265855

TANK KIT, RECOVERY, [I-MOP]

There was an error adding item(s) to the cart. Please try again.

1251765

FLOAT ASM, BALL [XL & XXL PLUS IMOP]

There was an error adding item(s) to the cart. Please try again.

1265853

SPLASH GUARD KIT, LH & RH [I-MOP XL]

There was an error adding item(s) to the cart. Please try again.

1232094

CHARGER, WALL [i-mop 3 LAYER]

There was an error adding item(s) to the cart. Please try again.

1232057

MOP CART KIT [i-mop I-CART L]

There was an error adding item(s) to the cart. Please try again.

i-mop XL Plus DOCUMENTATION

Select Region and Language

Brochure

i-mop Lite / i-mop XL Plus Brochure

291.1 kB

Operator Manuals

i-charge 9 User Manual, English (Teal Model)

1.2 MB
i-charge 2 User Manual, English

1.2 MB
i-mop XL Plus User Manual (EN) SN 36xxxx

2.6 MB
i-mop XL Quick Start Guide (Global)

3.3 MB

Parts Manuals

imop Xl Plus Parts Manual Global (Teal Model) (S/N 340001- )

2.3 MB

Wall Chart

i-mop XL Wall Chart (Textless)

3.1 MB
