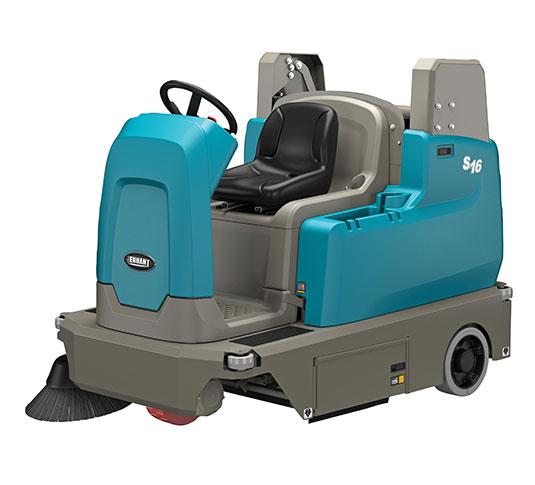

S16 Battery-Powered Compact Ride-On Sweeper
Providing big productivity and versatility in a compact, battery-powered ride-on sweeper, the S16 delivers exceptional sweeping performance across a variety of surfaces and debris types. Achieve impressive dust control with a multi-stage filtration system and maintain air quality with fume-free operation.
Cleaning Path
1,520 mm (Dual Side Brush), 1,170 mm (single side brush)
Hopper Capacity
150 L
Estimated Coverage/Productivity
Up to 10,340 sq m (single side brush), Up to 13,490 sq m (dual side brush)
There was an error adding item(s) to the cart. Please try again.
S16 FEATURES
HIGHLIGHTS
- Meet your facility's needs with high-dump and low-dump configurations.
- Achieve consistent cleaning results across various surfaces and debris types with MaxPro™ sweeping technology that provides consistent power to the main brush.
- Maintain indoor air quality and effectively contain dust with a multi-stage filtration system and fume-free battery operation.
- Get an easy operation and maintenance experience with intuitive controls and easy-to-identify yellow touch points.
- Extend runtime and clean with reduced noise levels with Eco-Mode™.
S16 SPECIFICATIONS
-
Estimated Coverage/Productivity: Up to 10,340 sq m (single side brush), Up to 13,490 sq m (dual side brush)
-
Dust Control System: Perma-filter (Stage 1), Panel Filter (Stage 2), HEPA Filter (Stage 3, optional)
-
Weight: 975 kgs (net high-dump with base battery), 880 kgs (net low-dump with base battery)
-
Machine Type: Ride-On
-
Power Sources: Battery
-
Main Brush Dimensions: 810 mm
-
Machine Width: 1,165 mm
-
Propelling Speed: Up to 8.8 km/h
-
Dump Type: Low Dump (Manual), High Dump (Automatic)
-
Application: Indoor, Outdoor
-
Sweep Technology: Overthrow
-
Air Technology / Broom Technology: Broom Technology
-
Sound Level: As low as 67 dBA
-
Estimated Run Time: Up to 3.9 hours (base), Up to 6.5 hours (high-capacity)
-
Side Brush Dimensions: 510 mm (Diameter)
-
Hopper Capacity: 150 L
-
Machine Length: 1,815 mm
-
Cleaning Path: 1,520 mm (Dual Side Brush), 1,170 mm (single side brush)
-
Machine Height: 1,500 mm, 2,095 mm (with overhead guard)
S16 KEY BENEFITS
Reduce Cost to Clean
Reduce your cost of ownership with versatile cleaning performance and quality construction.
- Minimise the need for multiple passes with excellent sweeping and edge cleaning performance.
- Increase productivity with a wider sweeping pass when you choose an optional second sweeping side brush.
- Lower your labour costs by eliminating the need to manually handle swept debris with a powered high dump.
- Maximise productivity with a wide sweep path and a large hopper capacity.
- Capture fibres at maximum efficiency with the FiberShield™ lint screen.
- Prevent damage when sweeping on carpeted surfaces with non-marking skirts.
Maintain Health & Safety
Get health and safety benefits for operators, employees and customers with the S16’s innovative features.
- Help maintain indoor air quality with a multi-stage filtration system and a powerful filter shaker that contain dust generated during the sweeping process.
- Keep your environment safe with a fume-free cleaning process.
- Increase safety for various operators when dumping with more ergonomic operation using the VarioHeight™ handle featured on the low dump model.
- Spend more time cleaning with a timed filter shaker that effectively cleans the filter and ensures optimal dust control with fewer shake-backs.
- Improve safety and get effective operation in the most severe environments with an optional FOPS certified overhead guard.
Enhance Facility Image
Get consistent cleaning results, even in the toughest environments, with the S16’s effective sweeping capabilities.
- Achieve consistent cleaning results in both indoor and outdoor applications with MaxPro™ sweeping technology, which provides consistent brush power regardless of surface and debris changes.
- Get excellent carpet cleaning results with proven performance on carpeted surfaces.
- Clean parking and loading dock areas effectively with the S16’s impressive ramp climbing capabilities.
- Extend runtime and clean anytime with reduced noise levels using Eco-Mode™.
Easy Operation & Maintenance
Maximise uptime and ease of maintenance with the S16’s intuitive controls and maintenance features.
- Simplify operation and quickly start cleaning with the large green 1-Step™ start button, which automatically remembers and engages the most recent machine settings.
- Reduce fatigue and increase operator safety and visibility with an operator-forward design.
- Increase battery life, extend battery run-time and optimise battery performance with the nearly maintenance-free optional Smart-Fill™ battery watering system.
- Simplify preventative maintenance with easy-to-identify yellow touch points.
- Reduce time spend on maintenance with no-tool access to all common maintenance items.
- Get convenient cleaning off aisle and in tight spaces with an available dry vacuum wand.
Silica Dust Exposure Control
Silica dust poses health and safety and compliance challenges in many work environments. Controlling the extremely fine dust is a complex task requiring both proper engineering controls and effective housekeeping practices. Tennant tools and technologies can play an important role in helping you manage the silica dust challenge, and can support silica exposure control plans that help you create safe, healthy, productive work environments and work towards OSHA compliance.
S16 PARTS
4033695
BRUSH, SWP, 32.4L, 06DR, PYP, SPL
There was an error adding item(s) to the cart. Please try again.
4034622
TIRE ASSY, SOLID, 300MM X 100MM, URE
There was an error adding item(s) to the cart. Please try again.
4033397
FILTER, DUST, PANEL 4.2 X 19.2 X 26.0
There was an error adding item(s) to the cart. Please try again.
4033643
BRUSH, SWP, 32.4L, WNDW, PYP, SPL
There was an error adding item(s) to the cart. Please try again.
4033046
CHARGER, 36VDC 900W 100-240VAC [OFF BRD]
There was an error adding item(s) to the cart. Please try again.
4020882
HOSE, FLEX, VACUUM, 02.0D, 024.0L
There was an error adding item(s) to the cart. Please try again.
4033642
BRUSH, SWP, 32.4L, WEDGE, PYP, SPL -
There was an error adding item(s) to the cart. Please try again.
4033716
FILTER, HEPA, 21.16 X 7.50 X 4.25
There was an error adding item(s) to the cart. Please try again.
4032991
BAG, VACUUM, PAPER [1PICK=1PKG OF 10BAG]
There was an error adding item(s) to the cart. Please try again.
4035299
CHARGER, 36VDC 900W 100-240VAC [ON BRD]
There was an error adding item(s) to the cart. Please try again.
4038463
SEAL, BULB, STR, 1.12H .88W ADH, BULK
There was an error adding item(s) to the cart. Please try again.
