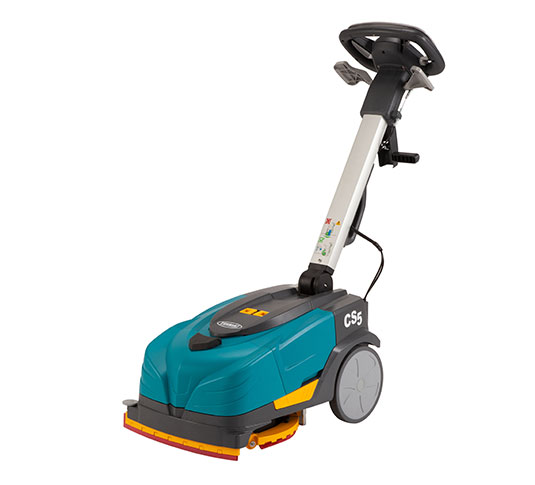

CS5 Micro-Scrubber

Drop the mop and get a better level of clean with the CS5 Micro-Scrubber. This innovative, 21st century scrubber eliminates many of the challenges of traditional mop and bucket cleaning. Instead of pushing around dirty water, the CS5's separate solution and recovery tanks deliver fresh water for scrubbing. Where traditional mop and bucket cleaning would often leave behind a slick, dangerous floor, the CS5 leaves a safer, drier floor by quietly and effectively recovering used water.

Cleaning Path

11 in / 280 mm

Solution Tank Capacity

1.3 gal / 5 L

Main Down Pressure

Up to 26 lb / 12 kg

There was an error adding item(s) to the cart. Please try again.

CS5 Micro-Scrubber

There was an error adding item(s) to the cart. Please try again.

CS5 SPECIFICATIONS

Estimated Coverage/Productivity: Up to 10505 sq ft / 976 sq m
Weight: 43.65 lbs / 19.8 kg (with standard battery), 44.53 lbs / 20.2 kg (with optional battery)
Squeegee Width: 14.96 in / 380 mm
Machine Type: Walk-Behind
Estimated Run Time: 50 mins (standard), Up to 75 mins (optional)
Power Source: Lithium-Ion Battery
Battery Charger Type: Corded
Machine Length: 24.21 in / 615 m (handle upright), 30.31 in / 770 mm (handle folded)
Cleaning Path: 11 in / 280 mm
Application: Indoor

Recovery Tank Capacity: 1.3 gal / 5 L
Solution Tank Capacity: 1.3 gal / 5 L
Sound Level: As low as 63 dBA
Main Down Pressure: Up to 26 lb / 12 kg
Charger Type: Off-board
Pad RPMs: Up to 160 rpm
Machine Width: 16.24 in / 412.5 mm
Head Type: Disk
Machine Height: 41.29 in / 1049 mm (handle upright), 15.7 in / 399 mm (handle folded)

Show more Show more

CS5 PARTS & CONSUMABLES

SPPV02580

BRUSH, SCB, DISK, 28CM, PYP, SOFT

There was an error adding item(s) to the cart. Please try again.

SPPV02438

BRUSH, SCB, DISK, 28CM, PYP, MED

There was an error adding item(s) to the cart. Please try again.

SPPV02581

BRUSH, SCB, DISK, 28CM PYP, HARD

There was an error adding item(s) to the cart. Please try again.

SPPV02583

PAD, SCB, 28CM, WHITE [PKG OF 4 PADS]

There was an error adding item(s) to the cart. Please try again.

SPPV02584

PAD, RED, BUFFING, 11.0/280 [BOX=4PC]

There was an error adding item(s) to the cart. Please try again.

SPPV02582

DRIVER ASSY, PAD, 28CM, 3-LUG

There was an error adding item(s) to the cart. Please try again.

KTRI06057

BATTERY, LI-ION, 36V, 5.5AH

There was an error adding item(s) to the cart. Please try again.

KTRI06058

BATTERY, LI-ION, 36V, 7.5AH

There was an error adding item(s) to the cart. Please try again.

BACA00263

CHARGER, 45VDC, 2A

There was an error adding item(s) to the cart. Please try again.

MECB02131

CORD, POWER, CHRGR, 120V [NA]

There was an error adding item(s) to the cart. Please try again.

KTRI06148

BLADE KIT, SQGE, 28CM, LINATEX, STR

There was an error adding item(s) to the cart. Please try again.

KTRI06149

BLADE KIT, SQGE, 28CM, LINATEX,PARABOLIC

There was an error adding item(s) to the cart. Please try again.

KTRI06150

BLADE KIT, SQGE, 28CM, RBR, STR

There was an error adding item(s) to the cart. Please try again.

KTRI06151

BLADE KIT, SQGE, 28CM, GUM, PARABOLIC

There was an error adding item(s) to the cart. Please try again.

KTRI06152

BLADE KIT, SQGE, 28CM, PYU, STR

There was an error adding item(s) to the cart. Please try again.

KTRI06153

BLADE KIT, SQGE, 28CM, PYU, PARABOLIC

There was an error adding item(s) to the cart. Please try again.

KTRI06154

SQUEEGEE ASSY, 28CM, LINATEX, STR

There was an error adding item(s) to the cart. Please try again.

KTRI06155

SQUEEGEE ASSY, 28CM, LINATEX, PARABOLIC

There was an error adding item(s) to the cart. Please try again.

MPVR12348

FILTER, SOLTN, TANK

There was an error adding item(s) to the cart. Please try again.

MPVR12484

FILTER, AIR, INLET, VACUUM

There was an error adding item(s) to the cart. Please try again.

MPVR12311

WHEEL, FRONT, SQGE

There was an error adding item(s) to the cart. Please try again.

TBFX01283

HOSE, FRONT, SQGE

There was an error adding item(s) to the cart. Please try again.

TBFX01282

HOSE, REAR, SQGE

There was an error adding item(s) to the cart. Please try again.

KTRI06105

VALVE KIT, SUC [CS5]

There was an error adding item(s) to the cart. Please try again.

MOCC00477

MOTOR, BRUSH, 36VDC, 100W, IP44

There was an error adding item(s) to the cart. Please try again.

MOCC00481

VACUUM, MOTOR, 36VDC

There was an error adding item(s) to the cart. Please try again.

PPEL00140

PUMP, SOLTN

There was an error adding item(s) to the cart. Please try again.

GUGO00622

GASKET, COVER, RECVY, TANK

There was an error adding item(s) to the cart. Please try again.

KTRI06048

COVER KIT, RECVY, TANK

There was an error adding item(s) to the cart. Please try again.

KTRI06097

TANK ASSY, RECVY [CS5]

There was an error adding item(s) to the cart. Please try again.

KTRI06104

TANK ASSY, SOLTN [CS5]

There was an error adding item(s) to the cart. Please try again.
