ATLV 4300 All-Terrain Ride-On Vacuum Sweeper

Tackle outdoor cleaning challenges on all terrains and in hard-to-reach places. This easy-to-operate all-terrain rode-on litter vacuum sweeper keeps your facility looking its best while reducing your cost to clean.

Cleaning Path
48 in /1220 mm
Hopper Capacity
110 gal / 416 L
Estimated Coverage/Productivity
Up to 79200 sq ft / 7370 sq m
ATLV 4300 All-Terrain Ride-On Vacuum Sweeper

ATLV 4300 FEATURES

HIGHLIGHTS

  • Clean all types of outdoor terrain from asphalt and concrete to turf and grass.
  • Maximize operator efficiency with safe, stable operation and driver safety features.
  • Allow more time to clean with vacuum fan and extra-large hopper.
  • Choose from options like fence-line nozzle, water-assisted dust control configurations, ROPS-certified cabin, and custom colors.

ATLV 4300 SPECIFICATIONS

  • Air Technology / Broom Technology: Air Technology
  • Application: Outdoor
  • Dump Type: Manual
  • Estimated Run Time: Continuous
  • Main Brush Dimensions: Brush unit not available
  • Sound Level: As low as 89.7 dBA
  • Propelling Speed: Up to 16 mph / 26 km/h
  • Sweep Technology: Air Sweeper
  • Cleaning Path: 48 in /1220 mm
  • Hopper Capacity: 110 gal / 416 L
  • Dust Control Systems: Dry, Wet
  • Estimated Coverage/Productivity: Up to 79200 sq ft / 7370 sq m
  • Machine Type: Ride-On
  • Power Source: Diesel
  • Side Brush Dimensions: Brush unit not available
  • Service Plans: Gold, Silver, Pay as You Go, Block of Time
Show more Show more

ATLV 4300 KEY BENEFITS

ATLV All-Terrain Litter Vacuum cleaning hillside

Reduce Cost to Clean

Increase productivity with the Tennant ATLV litter vacuum's ability to clean on all terrains: Curbs, hills and along fence lines.

  • Clean more in fewer passes with the wide cleaning path of 48 in / 1,219 mm.

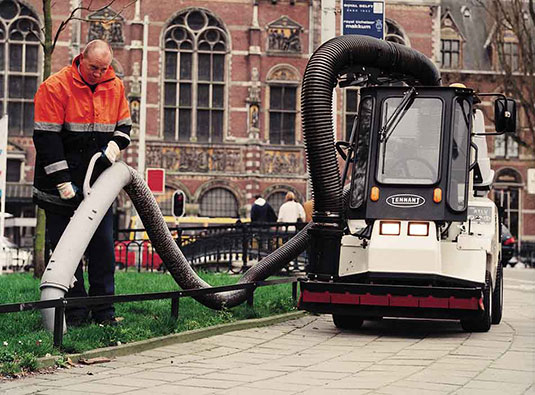

  • Easily clean hard-to-reach areas without leaving the seat with a vacuum hose that reaches up to 270 degrees.
  • Reduce operator training time with easy-to-use features.
  • Increase cleaning runtime with a large-capacity hopper and top-mounted vacuum fan that produces unrestricted airflow.
  • Ensure empties go smoothly with wide-angle, tilt-out litter tank.

Tennant ATLV All-Terrain Litter Vacuum cleaning park

Maintain Health & Safety

Designed for operator safety, the Tennant ATLV litter vacuum has a low center of gravity for greater stability and features reliable disc brakes and standard rollover protection. Optional power assistance helps operator lift and maneuver the large vacuum hose.

  • Eliminate the need to manually check debris levels with the debris canister portholes.
  • Increase productivity with optional power assistance to help lift and maneuver the large vacuum hose.
  • Increase safety on angled ground with stable, 4-wheel operation and low center of gravity.
  • Protect operators from rollovers with the optional ROPS-certified overhead bar.
  • Help contain airborne dust with water-assisted dust control configurations.

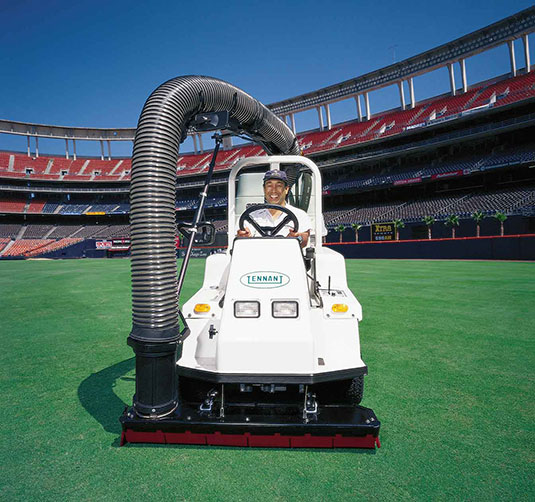

Tennant ATLV All-Terrain Litter Vacuum cleaning stadium

Enhance Facility Image

Ensure your facility makes a good first impression with exceptional litter pick-up.

  • Clean all surfaces including grassy areas, parking lots, fence lines and shrub beds.
  • Keep grounds free of trash, cigarettes, bottles and more.
  • Clean easily along fences with optional fence line nozzle on vacuum hose.
  • Have the option to customize machine colors for your facility or organization.

ATLV 4300 PARTS

59431 Polypropylene Disk Sweep Brush – 23 in / 584 mm alt
59431
Polypropylene Disk Sweep Brush – 23 in / 584 mm
List Price
There was an error adding item(s) to the cart. Please try again.
361201 Engine Air Filter Element alt
361201
Engine Air Filter Element
List Price
There was an error adding item(s) to the cart. Please try again.
65221 Hydraulic Oil Filter Element alt
65221
Hydraulic Oil Filter Element
List Price
There was an error adding item(s) to the cart. Please try again.
39703-2 Spin-On Engine Oil Filter Element alt
39703-2
Spin-On Engine Oil Filter Element
List Price
There was an error adding item(s) to the cart. Please try again.
77602 12 Volt Wet Trojan Battery alt
77602
12 Volt Wet Trojan Battery
List Price
There was an error adding item(s) to the cart. Please try again.
368541 Nylon Vacuum Bag – 30 in / 762 mm alt
368541
Nylon Vacuum Bag – 30 in / 762 mm
List Price
There was an error adding item(s) to the cart. Please try again.
368108 BAG, VACUUM alt
368108
BAG, VACUUM
List Price
There was an error adding item(s) to the cart. Please try again.
368082 VR, BELT, V, 9.5MM 37.4L [KU] alt
368082
VR, BELT, V, 9.5MM 37.4L [KU]
List Price
There was an error adding item(s) to the cart. Please try again.
367105 MOTOR, HYD, GEAR, EXT 0.50 LH 3000 alt
367105
MOTOR, HYD, GEAR, EXT 0.50 LH 3000
There was an error adding item(s) to the cart. Please try again.
367081 2000 PSI Interior Gear Hydraulic Motor alt
367081
2000 PSI Interior Gear Hydraulic Motor
List Price
There was an error adding item(s) to the cart. Please try again.
367040 TIRE ASSY, PNEU, 23 X 8.5-12 4.5BC 5BOLT alt
367040
TIRE ASSY, PNEU, 23 X 8.5-12 4.5BC 5BOLT
There was an error adding item(s) to the cart. Please try again.
367239 TIRE ASSY, FOAM, 23X8.5-12 4.5BC /5BOLT alt
367239
TIRE ASSY, FOAM, 23X8.5-12 4.5BC /5BOLT
List Price
There was an error adding item(s) to the cart. Please try again.
367734 Paper Vacuum Bag – 44 x 55 in (Roll Of 18 Bags) alt
367734
Paper Vacuum Bag – 44 x 55 in (Roll Of 18 Bags)
List Price
There was an error adding item(s) to the cart. Please try again.
